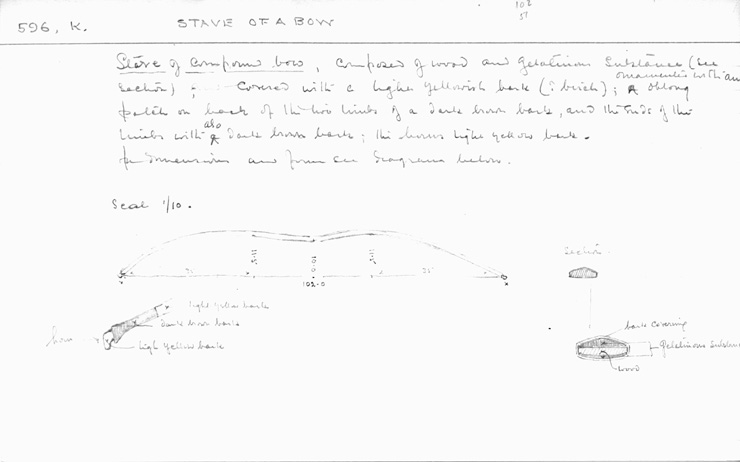

596, K. STAVE OF A BOW

Stave of compound bow, composed of wood and gelatinous substance
(see section); covered with a light yellowish bark (? birch);
ornamented with an oblong patch on back of the two limbs of a
dark brown bark, and the ends of the limbs with also dark brown
bark; the horns light yellow bark.
For dimensions and form see diagram below.

Scale 1/10.
<>
11.5
10.0
11.5
35
35
102.0

<>
Section.

<>
bark covering
gelatinous substance
wood

<>
light yellow bark
dark brown bark
light yellow bark
horn
