Carter No.: 239

Handlist description: Fourth (innermost) shrine

Card/Transcription No.: 239-11


NOTE: Fourth (innermost) Shrine - No. 239.

The roof section of this shrine is made in one piece, comprising: a barrel-vault abutting upright rectangular end pieces, the cornice, and the torus moulding. It thus formed as well as the roof the greater part of the entablature of the shrine. Its dimensions (overall, extreme edges of the cornice) are: L. 309 cents, W. 181 cents, and H. 40 cents. This form of the roof - a barrel-shaped vault abutting upright rectangular end pieces - is obviously derived from the ancient system employed when flying a barrel-vault (without centering) over crude brick buildings (cf the vaults over the store-chambers of the Ramesseum and modern native building South of Kom Ombo). To eliminate a wooden centering when building an ordinary vault, an upright end wall is first built, against which the flat bricks of the leaning courses of the flown-vault were leant to obviate the effects of gravity while forming the complete vault. The other end of the flown-vault was then closed with a similar wall.

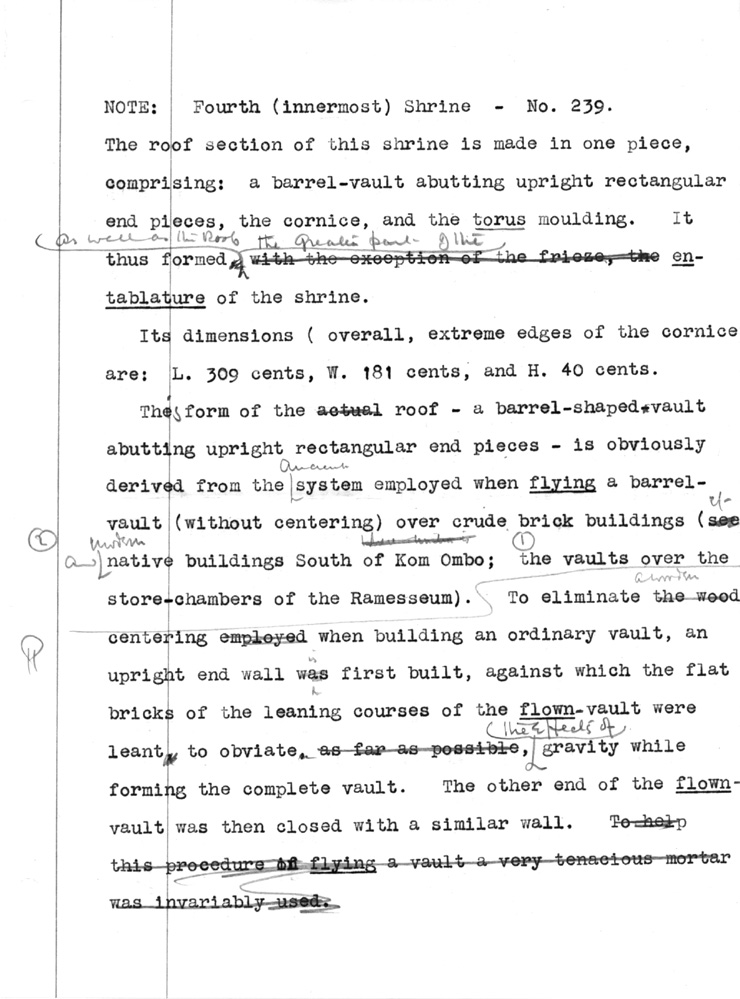

Card no. 239-11 relating to Carter no. 239
